After some more drilling and cleaning, the s/c disappeared. I connected some signal paths on the PCB by making some educated and some completely random guesses, and I used the thermal camera again to check that at least the last ASIC still worked. And it did!
March 31, 2025 at 8:37 PM
After some more drilling and cleaning, the s/c disappeared. I connected some signal paths on the PCB by making some educated and some completely random guesses, and I used the thermal camera again to check that at least the last ASIC still worked. And it did!
After more drilling, the mf still wouldn't go away, so I took another video. Btw, drilling a PCB is no fun. I was essentially burning the material away and subsequently inhaling it instead of drilling it. It seemed to be a four-layer PCB.
March 31, 2025 at 8:37 PM
After more drilling, the mf still wouldn't go away, so I took another video. Btw, drilling a PCB is no fun. I was essentially burning the material away and subsequently inhaling it instead of drilling it. It seemed to be a four-layer PCB.
However, the s/c wouldn't go away, so it was time to take out my new thermal camera. I connected the board to a regulated power supply, set the voltage to 12V, and limited the current to 10A. Here's what I got.
March 31, 2025 at 8:37 PM
However, the s/c wouldn't go away, so it was time to take out my new thermal camera. I connected the board to a regulated power supply, set the voltage to 12V, and limited the current to 10A. Here's what I got.
I removed the SMDs related to the affected ASIC and drilled out the burned part to get rid of the s/c.
March 31, 2025 at 8:37 PM
I removed the SMDs related to the affected ASIC and drilled out the burned part to get rid of the s/c.
And this is what it looked like under the heatsink.
March 31, 2025 at 8:37 PM
And this is what it looked like under the heatsink.

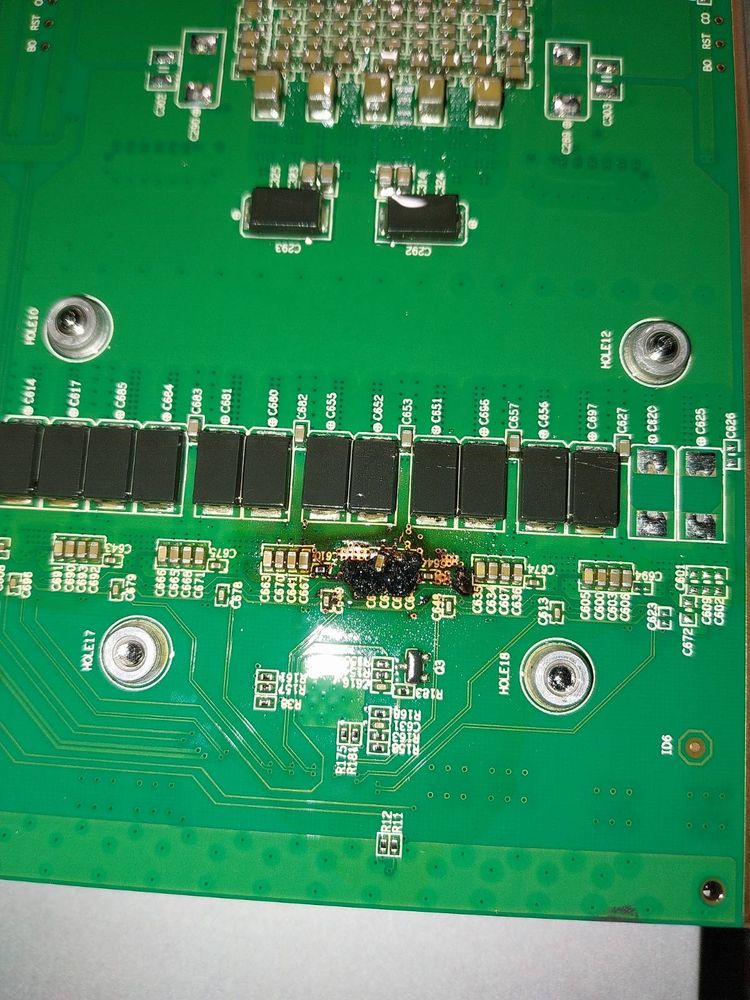

The same failure happened again on the same board. This is what it looked like on the other side of the board.
March 31, 2025 at 8:37 PM
The same failure happened again on the same board. This is what it looked like on the other side of the board.
I recently managed to fix yet another failure of ASIC mining hw. The Z15 machine has three hashboards, each of which has three ASICs. This is what the hashboard looks like. The hole in the PCB is due to a previous failure in the power circuitry.
March 31, 2025 at 8:37 PM
I recently managed to fix yet another failure of ASIC mining hw. The Z15 machine has three hashboards, each of which has three ASICs. This is what the hashboard looks like. The hole in the PCB is due to a previous failure in the power circuitry.
